LENGTH

8' to 12'

WIDTH

96” O.D. standard

CAPACITIES:

2.1 to 5.8 cubic yards

SIDE CONSTRUCTION

12 ga. grade 50 high strength steel 3 bend dirt shedding top rail, 2” I.D. board pockets Side heights of 12” and 16”

FRONT END

40” Front integral one piece 10 ga. 50,000 PSI min. bulkhead with pressed horizontal stiffener and tapered ¼ cab shield, window cut-out, full depth front corner pillars.

FLOOR CONSTRUCTION

7 gauge A1011 steel 2 bend floor with 7” deep rear apron at rear of body.

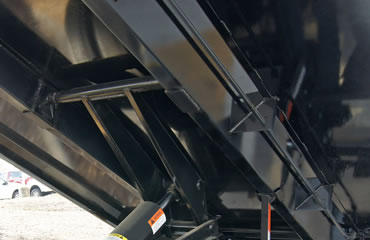

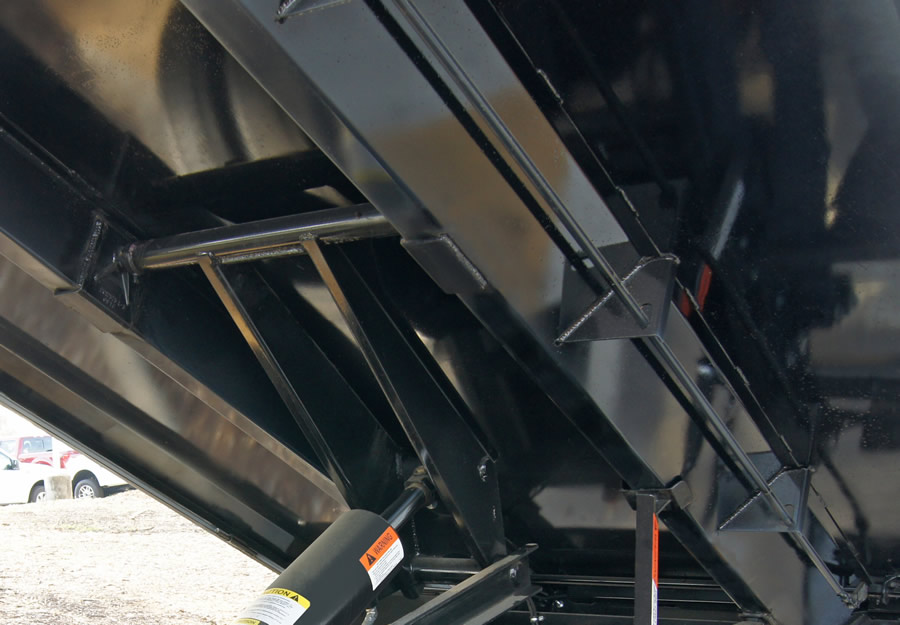

UNDERSTRCTURE

7” tall 7 gauge 50,000 PSI steel one piece trapezoidal longitudinals.
Crossmemberless design.

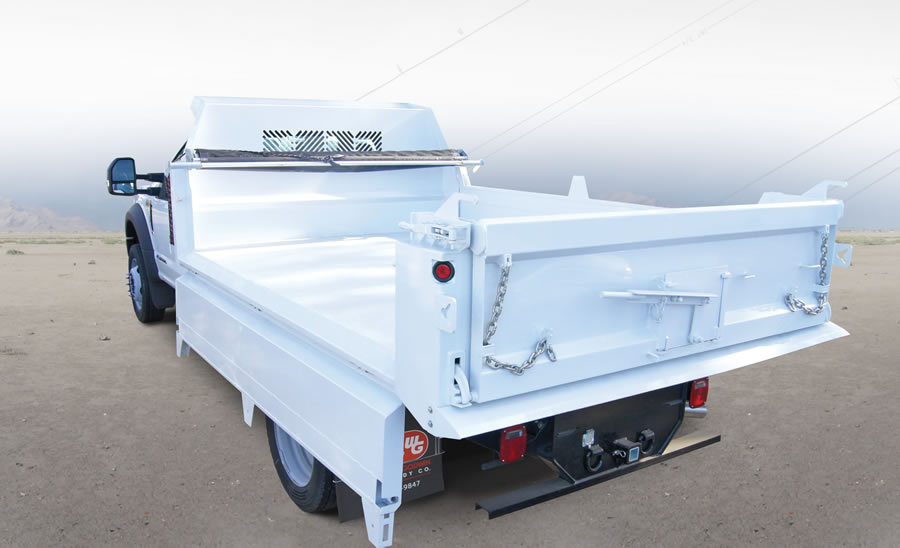

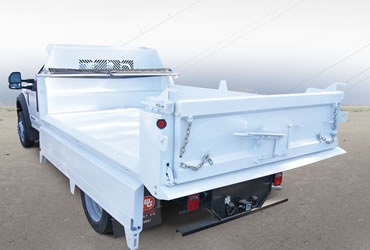

TAILGATE

10 ga. 50,000 PSI min. steel inner panel and a 12 ga. 50,000PSI min. outer panel. Top of tailgate to be double sloping dirt shedding. Manual quick release tailgate with over lock hardware. 5/16 “drop and spreader chains. Standard 2-way operation. Tailgate heights of 18” and 22”.

PAINT

Industry leading thermoset powder coating with thermoset zinc primer is STANDARD for all Williamsen-Godwin manufactured products.

ADDITIONAL OPTIONS

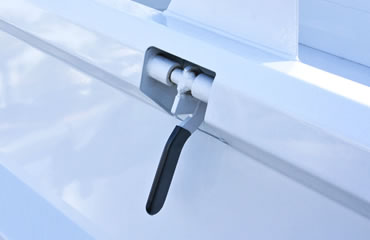

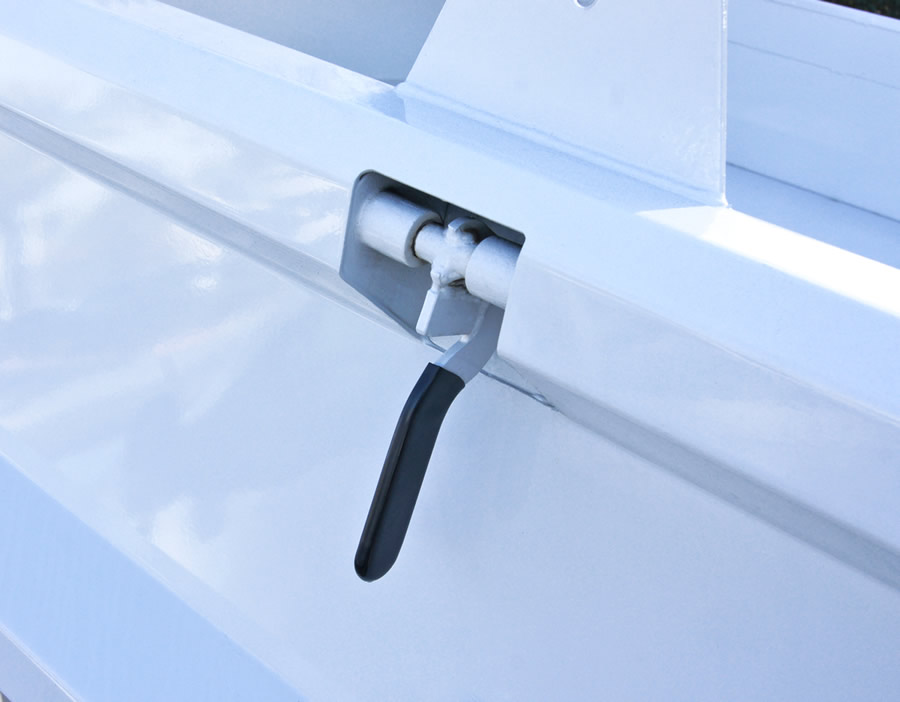

Fold down sides with single lever locking cam action mechanism,
with hidden greaseable hinges
Steel or wood sideboards
Stainless steel body option
Sliding lever ditch gates
Manual spring return tarp system
10 ga. bolt on 6” rear spreader apron
Champion underbody hoist
