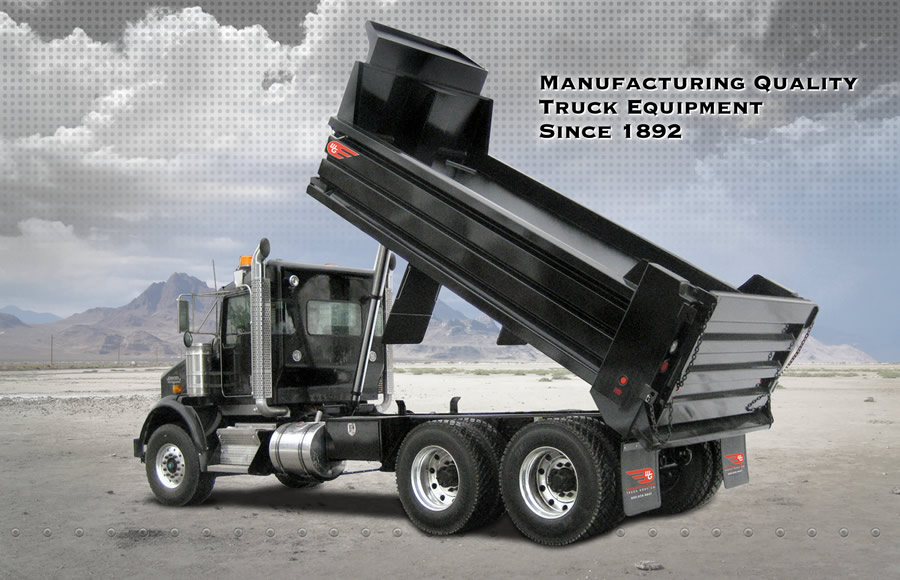

LENGTH
10 ft to 22 ft
CAPACITY
6 to 26 cubic yards
WIDTH
86“ I.D. 96” O.D.
Optional widths available upon request.

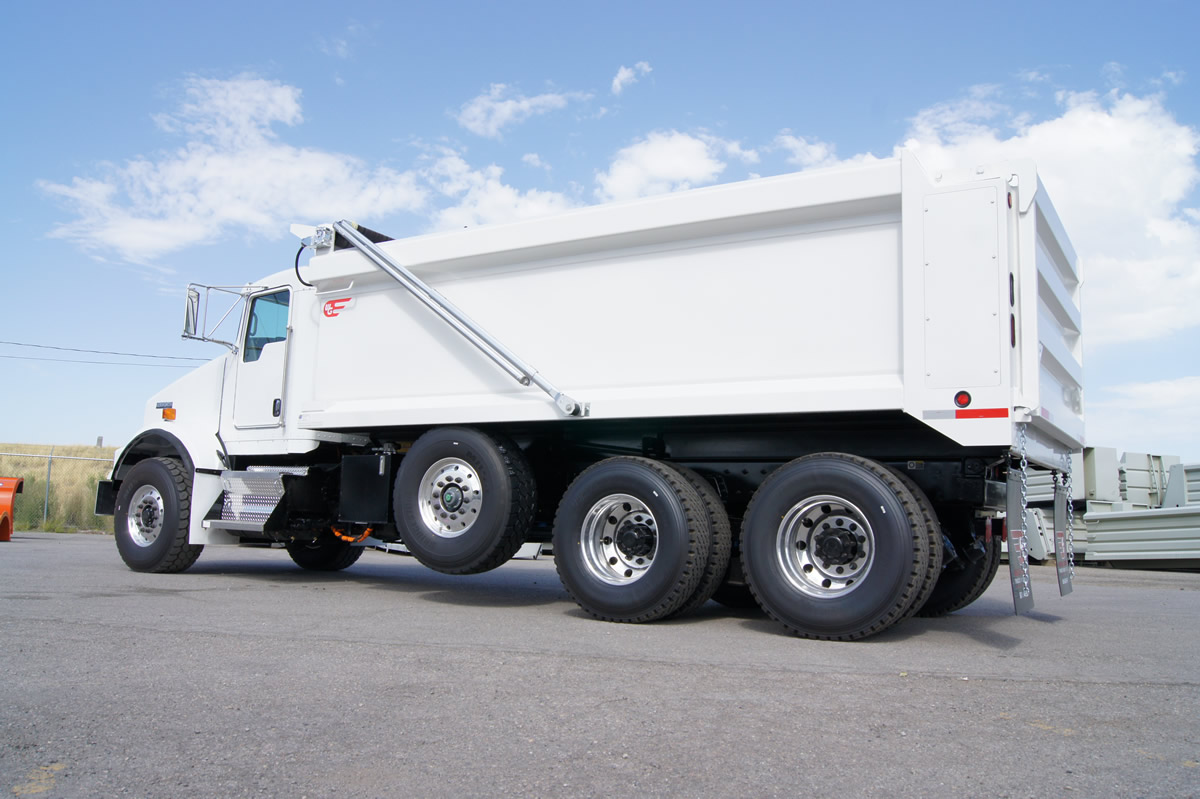

SIDE CONSTRUCTION
10 gauge grade 50 high strength steel.
Dirt shedding sloped top and bottom rail.
7 gauge rear corner post.
SIDE OPTIONS (inner panel)
7 gauge high strength 50K steel.
3/16” AR450 175/225K PSI quench and
tempered abrasion resistant steel.
1 to 4 horizontal side braces available.
FRONT
FRONT
3/16” 50K high strength steel.
62” high with 2 horizontal braces.
CYLINDER HOUSING
Inboard or outboard cylinder.
Body UNDERSTRUCTURE
Barless understructure design
with 8” I-beam stringers.
FLOORS
3/16” AR450 175/225K PSI quench and
tempered high strength abrasion resistant steel.
Side floor formed in one piece.
FLOOR OPTIONS
Wood cushion.
Double overlay floor construction.
1/4“ AR450 steel.

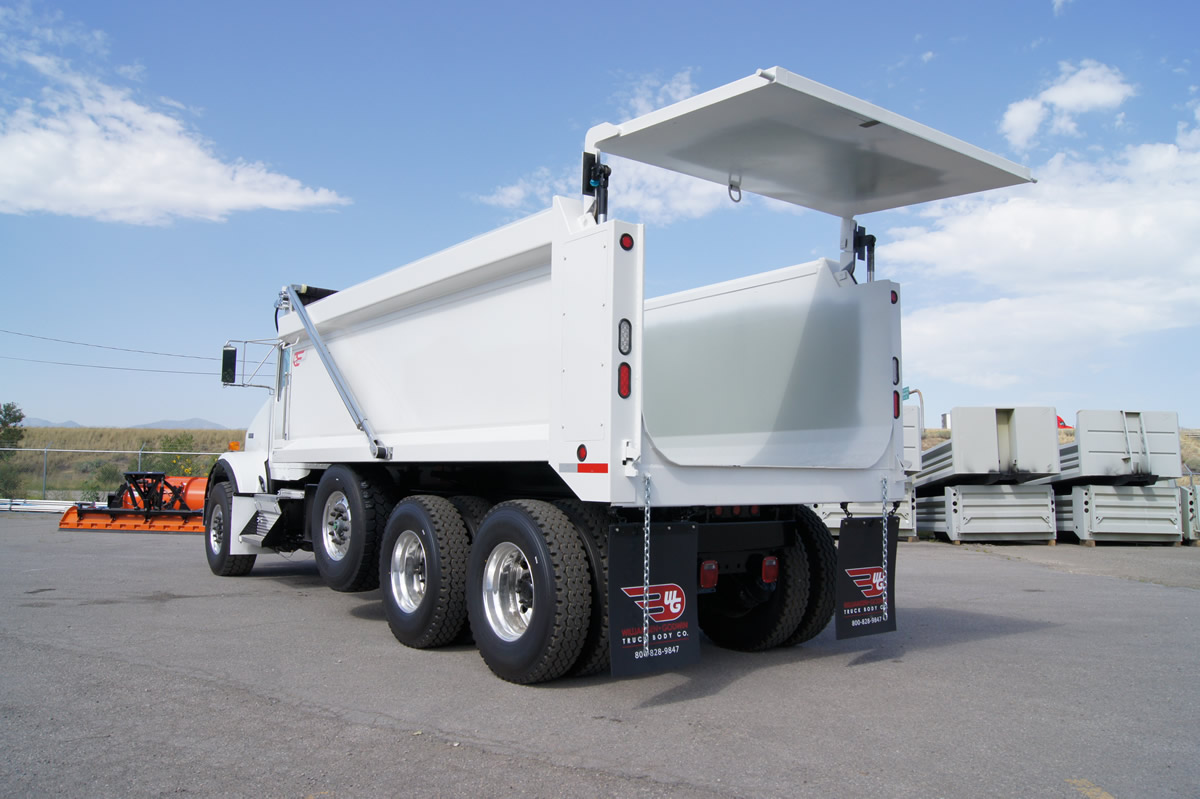

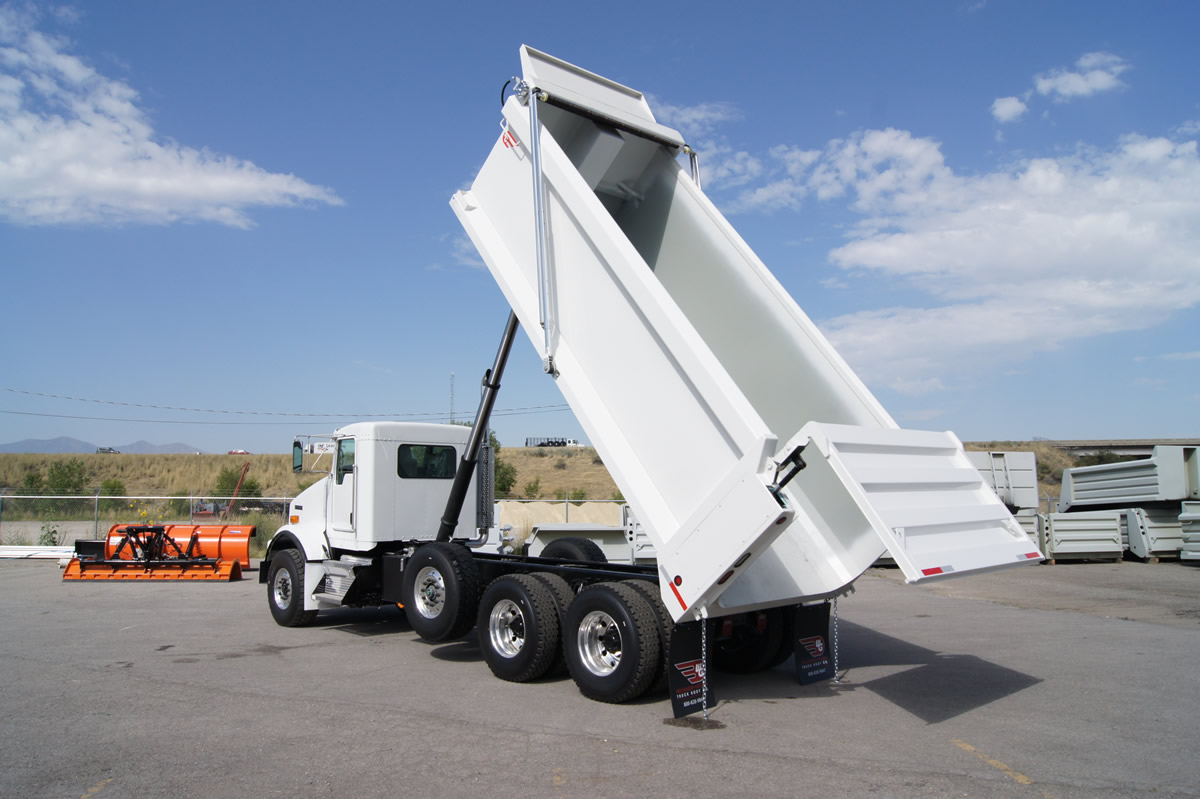

TAILGATE
10 gauge high tensile steel outer panel.
3/16” high tensile inner panel to form double wall.
Fully boxed perimeter with integral formed
horizontal brace. Straight style.
Air operated with over center locking hardware
TAILGATE OPTIONS
3/16” AR450 175/22K PSI inner panel
High-lift, double linked tailgate, air or hydraulic.
Water tight tailgate.
Additional horizontal or vertical tailgate braces.
Double link hinges.
Asphalt gates, lever actuated or rotary type.
Slope style.
LIGHTS
LED sealed system.
Complies with DOT and FMVSS108.
COATINGS
Epoxy primed
Urethane Top Coat
Cured at 190°
CUSTOMIZE WITH THESE SMART OPTIONS:
- Stainless Steel construction
- Air operated folding mud flaps
- Spreader aprons
- Walk Rails
- Ladders
- Grip strut steps with grab handles
- Vertical side braces
- Front corner posts
- Side boards
- Asphalt rear end
- STS (standard tapered sides)
Tapered sides for use with side
boards
- HTS (high tapered sides)
Solid tapered side heights equal
to bulkhead and tailgate height
