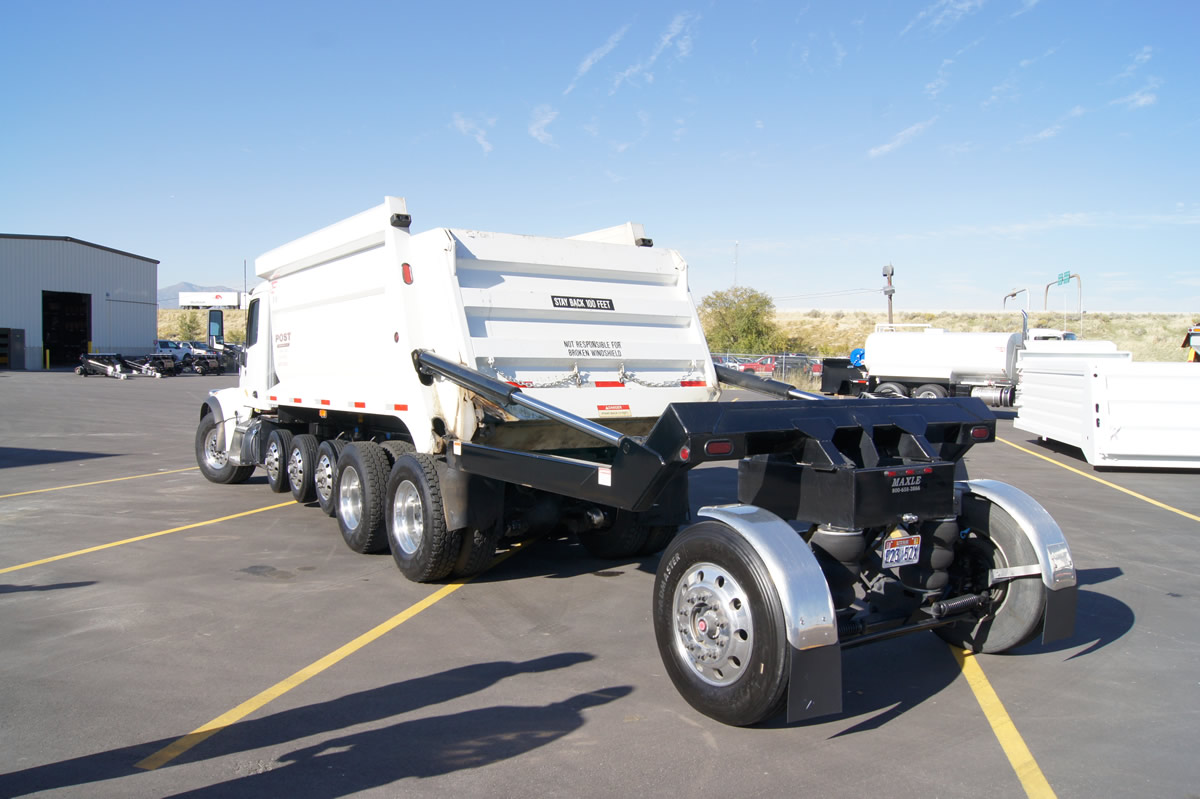

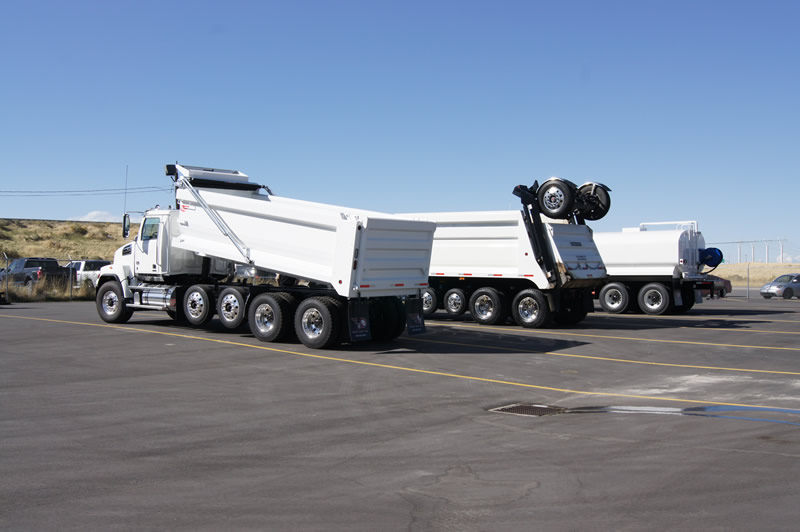

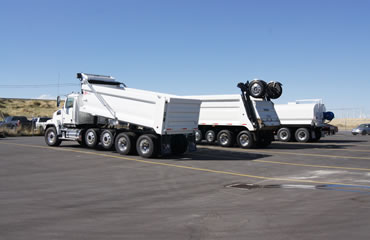

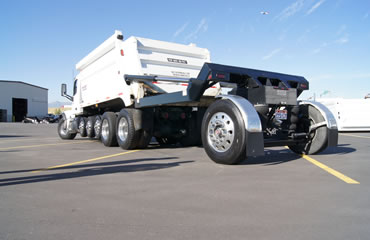

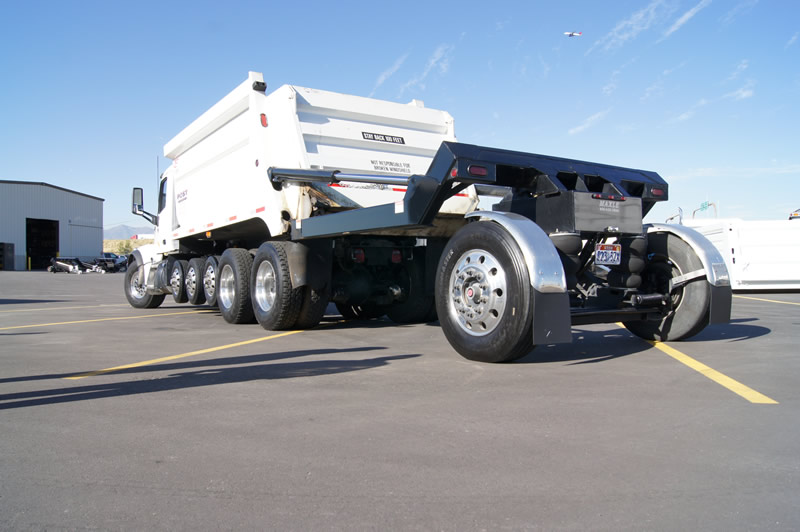

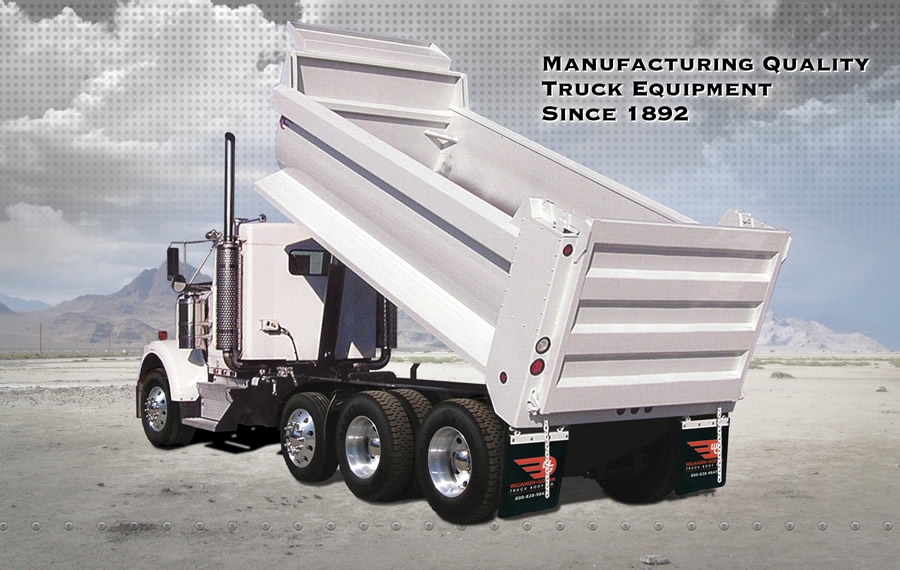

LENGTH

10’ to 20’ long in 6” increments.

WIDTH

84“ I.D. 96” O.D.
Optional widths available upon request.

HEIGHT

62“ high front.
48” high sides.
48“ high tailgate.

SIDE & FRONT CONSTRUCTION

3/16” AR450 BHN 175/225K PSI quench
and tempered, abrasion resistant steel
with 25” radius to floor.
1/4” A656 boxed sloping top rail for
maximum strength.
3/16” 50K rear corner posts, with holes
for recessed lights.

SIDE & FRONT OPTIONS

3/16” 50K steel.
1/8“ or 1/4” AR450 BHN 175/225K PSI
quench and tempered abrasion resistant
steel.

CYLINDER HOUSING

Outboard mounted cylinder standard
Optional inboard mounted cylinde

UNDERSTRUCTURE

Torsion resistant design with 8” x 15” side flange I-beam stringers.

UNDERSTRUCTURE OPTION

Trapezoidal 8” x 4” x 1/4” high tensile tubular stringers.

FLOORS

3/16” AR450 BHN 175/225K PSI quench and tempered, abrasion resistant steel.

FLOOR OPTIONS

1/4” AR450 BHN 175/225K PSI quench and tempered, abrasion resistant steel. 3/16” 50K high strength steel. 18” to 25” radius

FENDERS

Sloping 10 gauge tread plate full length of the Body.

TAILGATE

Double paneled 3/16” AR450 steel with fully
boxed parameter.
- Two integral formed horizontal braces.
- Straight tailgate with air operated
hardware.
- Positive overlocking flame cut hardware.
- Recessed upper tailgate hinges.
- Double link hinges
- High lift double hinged tailgate,
hydraulic or air operated, 15”
additional clearance above corner
pos

TAILGATE OPTIONS

Inner panel made of 1/4” AR450 BHN 175/225K PSI quench and tempered, abrasion resistant steel.
- Sloping tailgate.
- Asphalt gates, lever actuated.
- Water tight tailgate.

ADDITIONAL ELLIPTICAL Body OPTIONS

- Stainless Steel Bodies
- Spreader aprons
- Walk rails - Ladders
- Grip strut steps with grab handles
- Rubber cushion strips on stringers
- Asphalt rear end
- Cab protectors.

LIGHTS

Recessed LED sealed system that complies with DOT and FMVSS108.

COATINGS

Epoxy primed Urethane Top Coat Cured at 190º.
