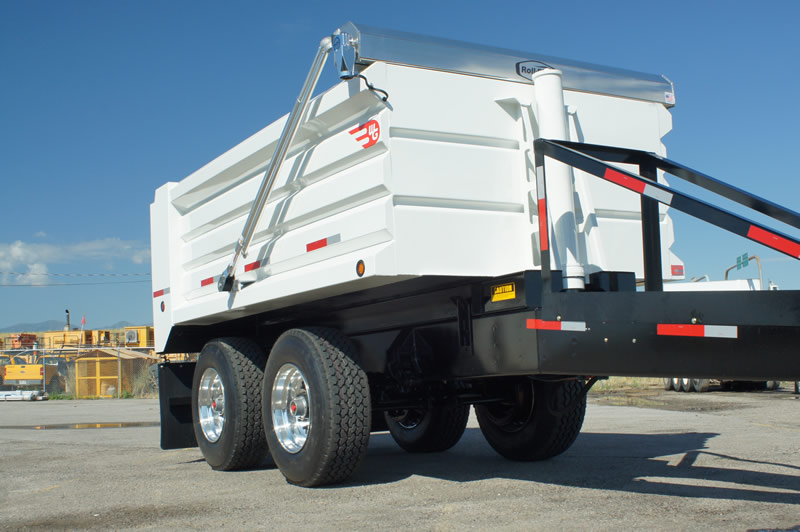

FRAME

Constructed of 1/4" formed Strenx 100psi steel channel with integral upper and lower crossmember gussets. 40º frame height for lower center of gravity.

HOIST

Trunnion mounted, single acting telescopic hoist, mounted in front of the body.

HOIST OPTIONS

Base mounted, single acting telescopic hoist, mounted in front of the body.

TONGUE JACK

12,000 lb. capacity
Crank style with quick drop leg

AXLES:

Axles are 5" round and have a 25,000 lb. capacity. 16" X 7" air brakes with ABS system.

AXLE OPTIONS:

Self-steering axle with reverse alignment system.
Self steering, air-lifting pusher or tag axles.
Disc brakes

COATINGS

Epoxy primed
Urethane Top Coat
Cured at 190º

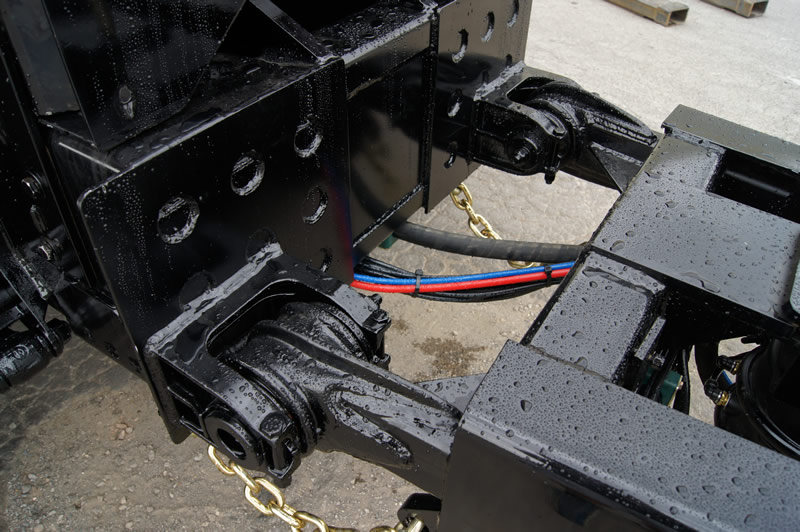

DRAWBAR

Tapered 1/4" Strenx 100K psi formed steel channels integral with frame. Rubber bushed swivel type eye stepped up on drawbar. All hydraulic and electrical lines routed inside frame and through drawbar. HD safety chains and holders for all air, electrical and hydraulic lines.

DRAW BAR OPTIONS

Hinged drawbar. Air operated telescopic draw bar with 6' to 7'6" travel, constructed of HD wall steel tube. Air, electrical and hydraulic lines are routed to not interfere with the sliding motino of the tongue.

SUSPENSION

Heavy duty, side of frame mounted hangars
25,000 lb. capacity per axle.
3-leaf springs

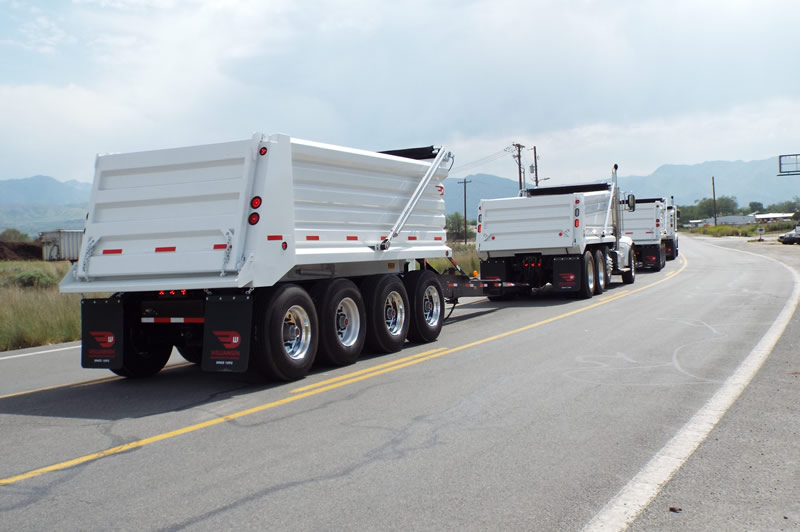

2,3 and 4 axle suspension

SUSPENSION OPTIONS

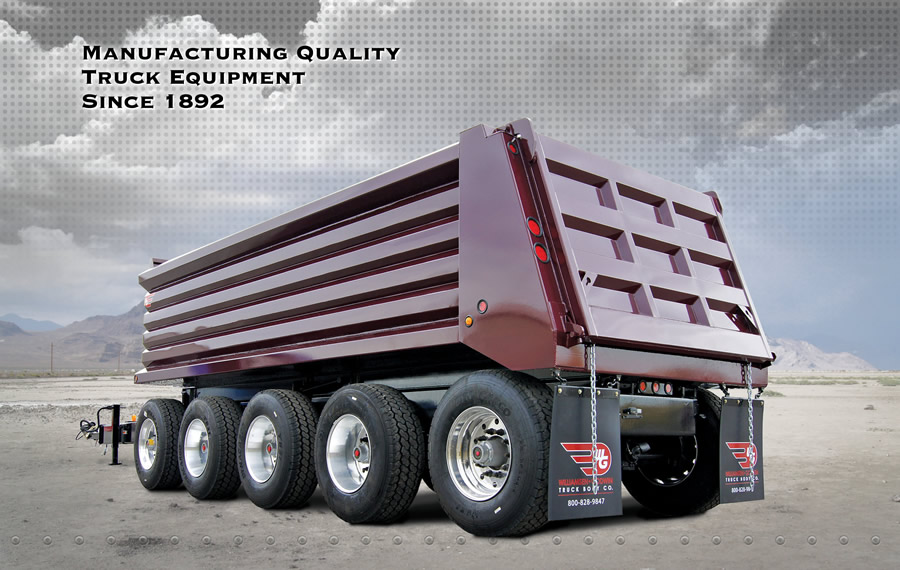

5 axle suspension
Single leave springs
Air-ride on all axles

LENGTHS

Length from Pintle eye to rear axle:
2-axle 30'7"
3-axle 37'2"
4-axle 39'2"
5-axle 45'2"
